Deep Wooden Frame with Black Plastic Foundation
Wholesale deep Langstroth wooden frame with black HDPE plastic foundation. Knot-free pine, 48.3x44.8x23.2cm. Factory-direct from BEEHIVE PRO, China. MOQ 1,000. Carton packed.
Specifications
- Frame Type
- Deep / Brood Frame

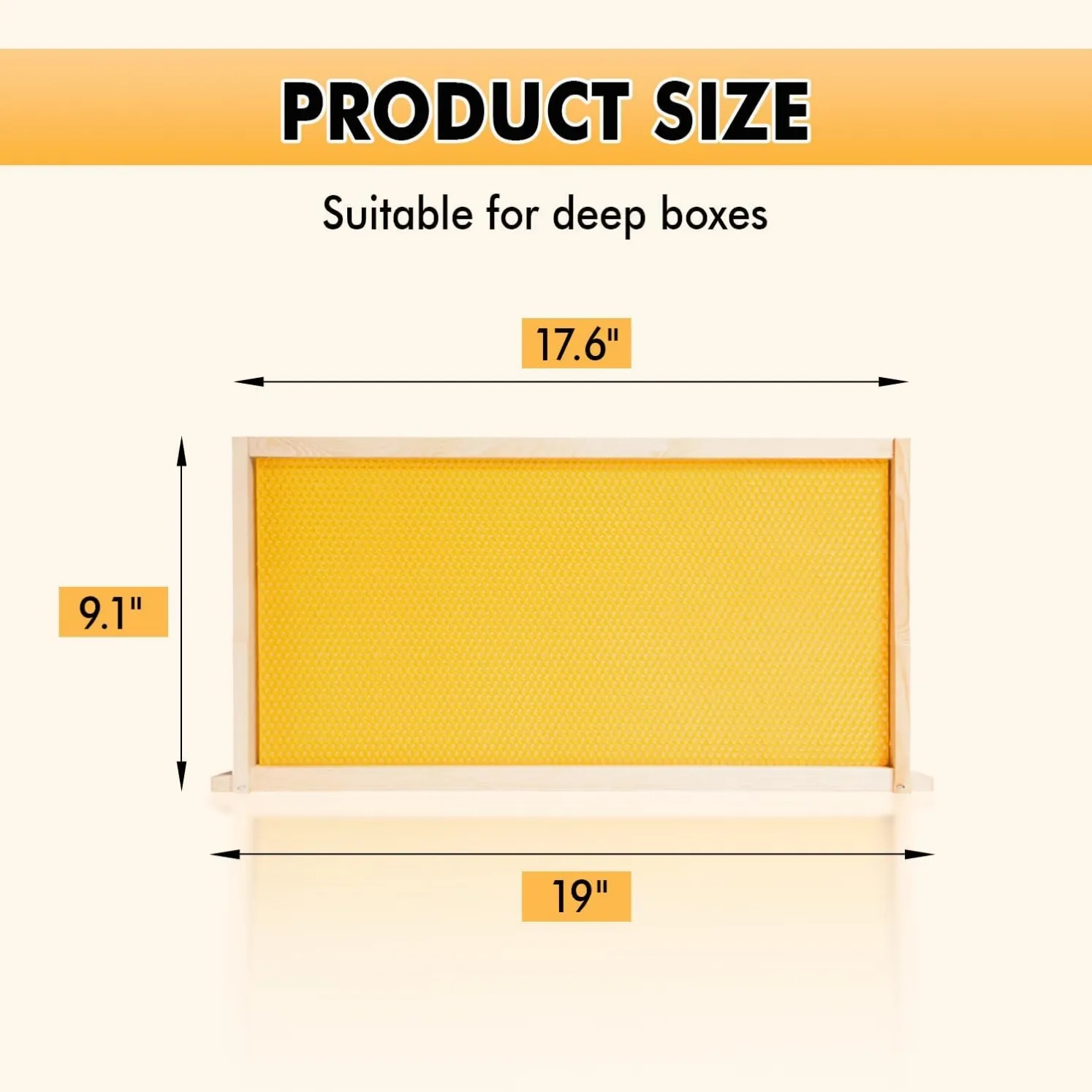

- Overall Dimensions
- 48.3 x 44.8 x 23.2 cm (19" x 17-5/8" x 9-1/8")
- Wood Material
- Pine (Pinus spp.), knot-free grade
- Foundation Material
- Black HDPE, virgin, food-grade
- Joinery
- Mortise-and-tenon, mechanical interlock
- Surface Finish
- Machine-sanded, smooth, splinter-free
- Compatible Hive
- Standard 10-frame Langstroth hive
- Packaging
- Flat-packed in 5-layer corrugated cartons, 100 frames/carton
- MOQ
- 1,000 frames
- Lead Time
- 15-20 working days
Product Overview
The Deep Wooden Frame with Black Plastic Foundation is engineered for brood chambers and deep honey supers in standard Langstroth hives. Each frame is crafted from carefully selected knot-free pine, precision-cut with mortise-and-tenon joinery, and fitted with a food-grade black HDPE plastic foundation. The dark foundation surface absorbs heat to accelerate comb building, while the precision cell imprint guides bees to draw straight, uniform comb — reducing cross-comb issues and maximizing usable comb area.
Key Features
Knot-Free Pine — zero knots, pitch pockets, or bark inclusions; uniform grain structure resists warping and cracking under heavy honey loads (up to 4 kg per frame)
Black HDPE Foundation — food-grade high-density polyethylene; heat-absorbing dark surface stimulates faster comb drawing; corrosion-resistant and reusable for multiple seasons
Deep Frame 48.3×23.2 cm Comb Area — generous brood and honey storage capacity; ideal for strong colonies in peak production season

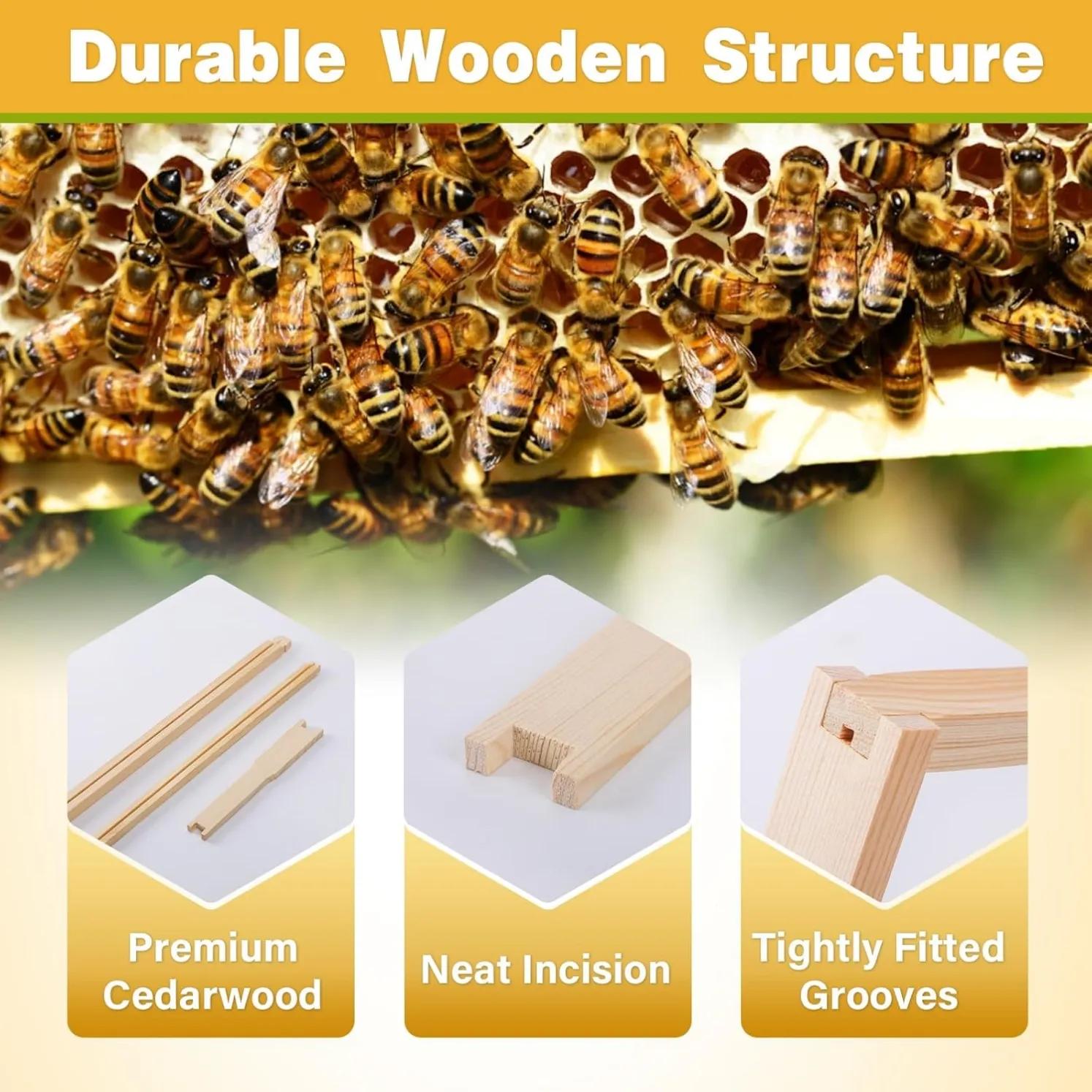

Mortise-and-Tenon Joinery — tight mechanical interlock without glue; frame stays square and wobble-free during extraction and handling
Fully Machine-Sanded — every surface and edge smoothed through 3-stage sanding; no splinters, safe for bees and beekeepers
Material Details

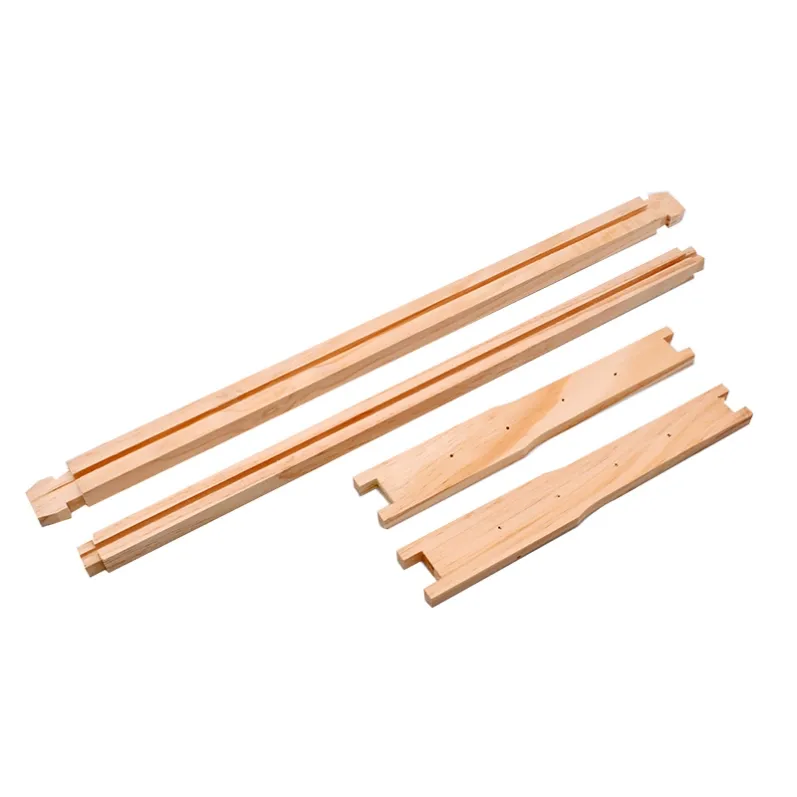

The frame body is milled from knot-free pine sourced from sustainably managed Northern China plantations. Every top bar, bottom bar, and end bar is individually inspected for knots, pitch pockets, and grain irregularities. The black HDPE plastic foundation is injection-molded from virgin food-grade polyethylene — no recycled content, no BPA. Black is chosen intentionally: the darker surface absorbs solar radiation, warming the foundation by 2-4°C above ambient, which stimulates bees to draw comb faster. The hexagonal cell pattern is precision-engraved on hardened tool steel molds to maintain consistent cell-wall thickness across millions of impressions.
Production Process
Kiln-dry pine to 8-12% moisture
CNC-mill bars to ±0.3mm tolerance
Injection-mold HDPE foundation at 180-220°C

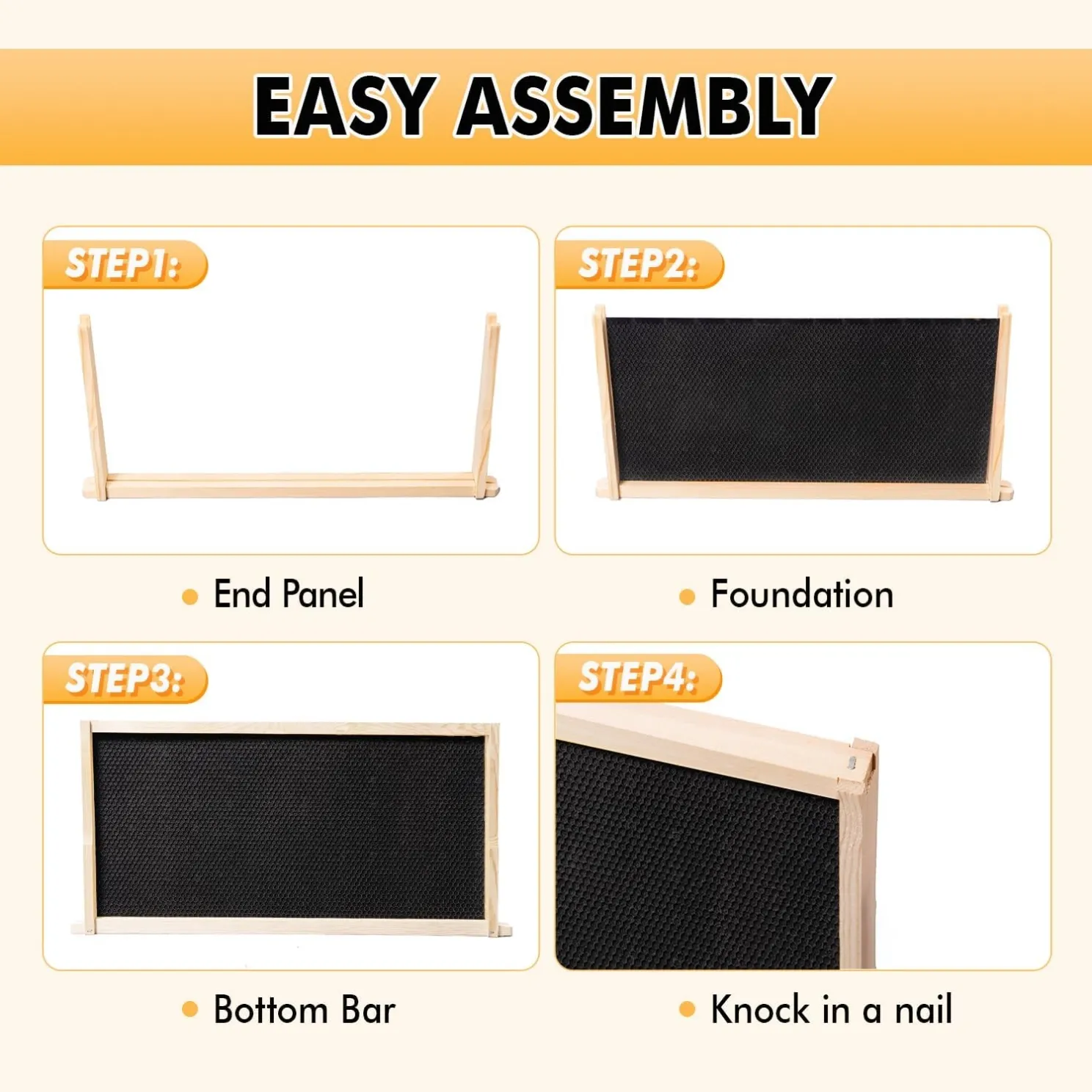

Mortise-and-tenon joinery assembly
3-stage sanding (coarse→medium→fine)
QC: dimensional check, pull test, visual inspection
Flat-pack in 5-layer cartons, PET strapped
